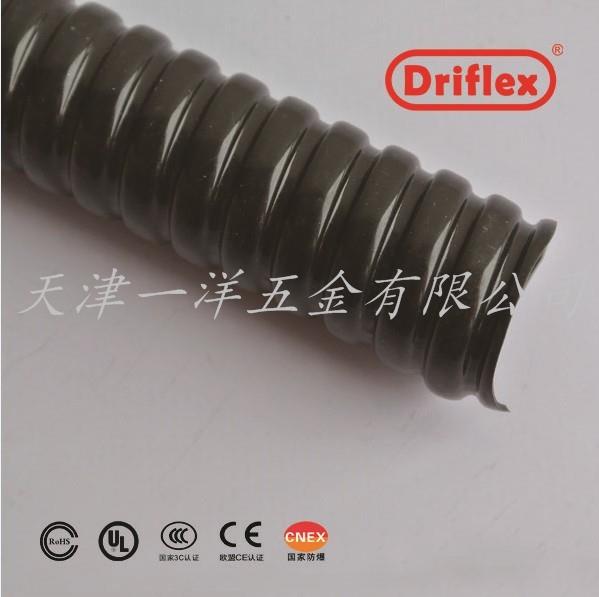

镀锌铁皮制成,表面PVC被覆.
轻质结构,弯曲性能及防水性.
用于大量生产型设备和工具机械,或任何狭小空间之电器配管区域.
耐温范围从-20度至+105度.
PVC包塑，可选择黑色、灰色、橙色。
Part No
Nominal Size
ISO mm
Nominal Size
US inches
I.D. mm
O.D. mm
Min. Bend
Radius mm
Length
M/coil
VJ-10 16 3/8" 12.3 - 12.8 16.7 - 17.2 50 50
VJ-11 20 1/2" 15.8 - 16.3 20.2 - 20.7 65 50
VJ-12 25 3/4" 20.7 - 21.2 25.5 - 26.1 75 50
VJ-13 32 1" 26.0 - 26.6 31.6 - 32.2 100 50
VJ-14 40 1-1/4" 34.7 - 35.4 40.8 - 41.5 125 30
VJ-15 50 1-1/2" 40.0 - 40.6 46.6 - 47.2 150 30
VJ-16 63 2" 51.3 - 51.9 58.1 - 58.7 175 20
VJ-17 75 2-1/2" 63.0 - 63.6 71.8 - 72.4 200 10
VJ-18 90 3" 78.0 - 78.7 87.2 - 87.9 225 10
VJ-19 100 4" 101.6 - 102.6 111.2 - 112.3 275 5
适合配套铁镀锌接头、铜镀镍、不锈钢或锌合金接头。
