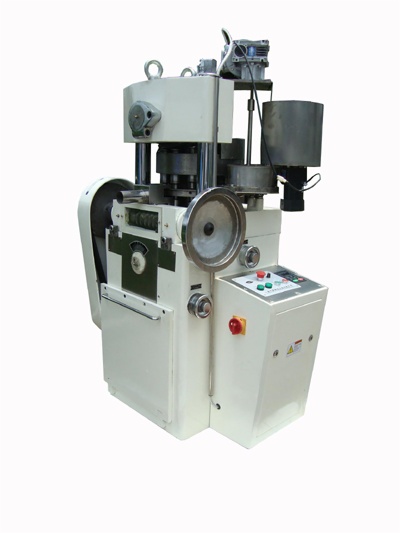

ZP13A.15A.17A.19A.21A旋转式压片机
主要用途
本系列压片机是我公司研发设计的一款旋转式压片机，用于将颗粒原料制成各种形状的片剂。本机除压制圆形片以外，还能压制异形片，特殊片，双层片、环形片等，可根据你的要求定制。同时运转时，噪音小、压力大、过压停机，避免机器受损。
MAIN PUROSE
This series of tablet pressing machine is a new type of rotary tablet press designed by our company, which can be used to make granular raw materials into various shapes. In addition to the suppression of the circular plate, but also the suppression of special-shaped pieces, special films, double film, ring, etc., can be customized according to your requirements. At the same time, the operation, the noise is small, pressure, excessive pressure to stop the machine to avoid damage.
技术参数 TECHNICAL PARAMETERS
型号 Model ZP-13A ZP-15A ZP-17A ZP-19A ZP-21A
冲模数Punch quantity（Sets） 13 15 17 19 21
压片压力Max.tablet pressurekn 150 150 120 120 80
压片直径Max.tablet diametermm 50 45 40 30 30
冲填深度Max.filling depthmm 18-25 18-25 18-25 18-25 18
压片厚度Max.tablet thicknessmm 8-15 8-15 8-15 8-15 9
转盘转速Turret rotary speedr/min 10-25 10-25 10-25 10-25 10-36
上冲杆长度Upper punch lengthmm 175 175 175 175 175
下冲杆长度Lower punch lengthmm 180 180 180 180 185
产量OutputPcs/h 7800-19500 9000-23000 10200-25500 11400-28500 45000
电动功率Motor powerkw 7.5 6极（Pole） 3
外形尺寸Overall sizemm 900×800×1640
主机重量Machine weightkg 1500 1500 1500 1500 1500
