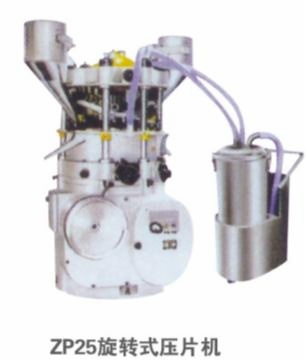

ZP25旋转式压片机
主要用途
本机用以将各种颗粒状原料压制成片状，除圆片以外还可以压制各种几何形状的异形片、双面刻字片。其结构为双压式，有两套加料装置和两套压轮。转盘上可装25付活络式冲杆，旋转一周即可压制50片。压制圆片时，根据片剂大小，冲杆上可装双冲、三冲和四冲。故适用于大批量生产，压片时转盘的速度、物料的充填深度、压片厚度、下冲顶出高度均可调节。随机附单独吸粉箱，通过吸分管与吸咀可吸取机器运转时说产生的粉尘，避免粉尘粘结堵塞，并可回收原料重新使用。
MAIN PUROSE
The utility model is used for pressing various granular raw materials into slices, and besides, the utility model can be used to suppress the special-shaped pieces and the double-sided lettering pieces of various geometric shapes. The structure of the utility model is a double pressure type, and the utility model is provided with two sets of feeding devices and a set of pressing wheels of the two sets. The turntable can be installed 25 to pay off the punching rod, rotating a week to suppress the 50. Press the wafer, according to the size of the tablet, the punch can be installed on the double punch, three and four punch. It is suitable for mass production, the pressure of rotary speed, the depth of the filling material and the thickness of the tablets and down top height can be adjusted. The utility model is characterized in that the dust suction box and the suction nozzle can absorb the dust generated when the machine is running, and the dust can be prevented from sticking and blocking, and the raw material can be reused.
技术参数 TECHNICAL PARAMETERS
型号 Model ZP-25
冲模数Punch quantity（Sets） 25
压片压力Max.tablet pressurekn 60
压片直径Max.tablet diametermm 20
冲填深度Max.filling depthmm 20
压片厚度Max.tablet thicknessmm 9
生产能力Production capacityPC/h 18000-30000片/时（单冲模具大至Φ20mm）（Single-punch mold up to Φ20mm）
36000-60000片/时（双冲模具大至Φ12mm）（Double-punch mold up to Φ12mm）
54000-90000片/时（三冲模具大至Φ9mm）（Three-punch mold up to Φ9mm）
72000-120000片/时（四冲模具大至Φ6mm）（Four-punch mold up to Φ6mm）
转盘转速Turret rotary speedr/min 6-15
电动功率Motor powerkw 3kw,380V,50HZ,980rmp/min
外形尺寸Overall sizemm 1100×1100×700
主机重量Machine weightkg 1800
