DBS-1Klb DBS-1.5Klb DBS-2.5Klb DBS-3Klb
DBS-5Klb DBS-10Klb DBS-15Klb DBS-20Klb DBS-25Klb DBS-30Klb
DBS-50Klb DBS-75Klb
DBSQ（QY） 桥式称重传感器 QY-10t QY-20t QY-25t QY-30t QY-50t
DBSQ-10t DBSQ-20t DBSQ-25t DBSQ-30t DBSQ-50t
DBSQD-20t DBSQ-30t DBSQ-50t
Features 特点

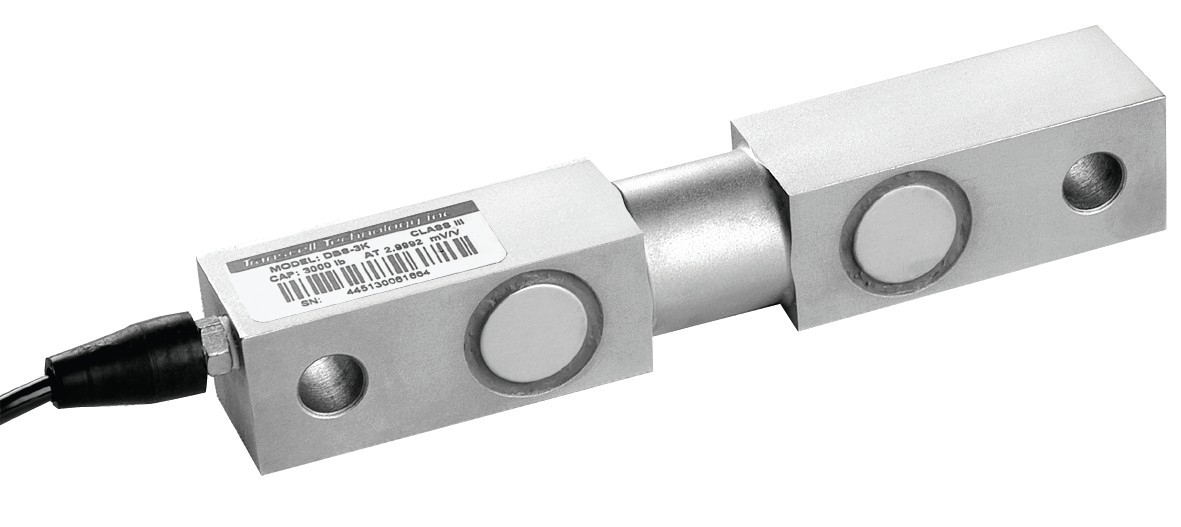

Double Ended Shear Beam Load Cell
Senior Alloy Steel
CMC, Approved
Easy to Install, Stabile & Reliable
Fit for Warehouse & Inventory Scales
and Batching Systems,etc.
双剪切梁式
通过CMC认证
合金钢材质
安装简便、，稳定可靠
适用于仓储秤和配料秤等
Specification 技术参数
Rated Output/额定输出
Zero Balance/零点平衡
Creep after 30 minutes/蠕变
Nonlinearity/非线性
Hysteresis/滞后
Repeatability/重复性
Temp. effect on output/灵敏度温漂
3.0mV/V ±0.1%
± 1% of rated output
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
±0.03% of rated output
≤0.002% of applied output/ºC
Temp. effect on zero/零点温漂≤0.002% of rated output/ºC
Safe Temp. Range/可用温度范围-10ºC to + 70ºC
Temp. Compensated/温度补偿范围
Safe Overload/安全载荷150%
-10ºC to + 50ºC
Input Impedance/输入阻抗775 ohm ± 5 ohm
Output Impedance/输出阻抗700 ohm ± 3 ohm
Insulation Resistance/绝缘阻抗≥5000 M ohm (50V DC)
Rated Excitation/推荐激励电压10V DC/AC
Maximum Excitation/激励电压15V DC/AC
Cable Length/导线长度6m / 10 m / 20m
Cable Color Code/导线颜色Red(+E) Black(-E) Green(+S) White(-S)
