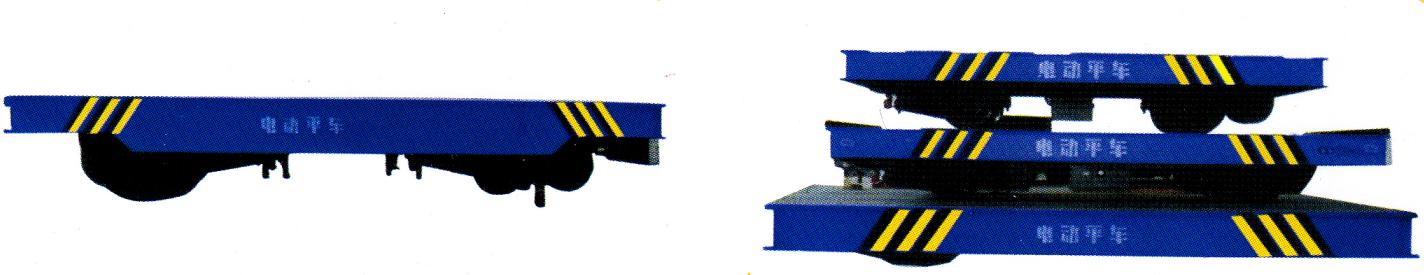

【低压电动平车(BDCD)】：
低压电动平车(BDCD)系列分为单相低压和三相低压。其原理通过地面控制系统，把380伏电源(单相或三相)电压峰值降到36伏的安全电压，反馈电力至导电轨(可兼做走行轨道)，经设备的导电装置将低压电送至车上的升压变压器，升压至380伏以拖动单相或三相电容电机，驱动设备运行。
【Low-voltage Electric Flat Car(BDCD)】：
Low-voltage Electric Flat Car(BDCD) is a low-voltage electric power supply rail flat car, its working principle is reducing 380V power supply (three-phase or single-phase) voltage to 36V safe voltage through the ground system, Fed back the low voltage to the conductor rail (flat as both conductor rail tracks of moving vehicles), through the conductive device to the flat car step-up transformer, then step-up to 380V in order to drag the three-phase or single-phase capacitor motors, Flat car driver to run.
【技术参数Technical Parameter】：
型号
Model 载重
Capacity(t) 台面尺寸Table size(mm) 速度
Speed
(m/min) 轨距
Rail Inner Gauge(mm) 电机功率Motor Power(kw) 车轮个数Wheel No. 设备自重
Weight(t) 推荐钢轨
Rail type
长Length 宽
Width 高
High
BDCD6 6 3600 2000 520 30 762 2.2 4 4.2 P24
BDCD10 10 3600 2000 520
BDCD16 16 4000 2200 650 3.5 5.6 P38
BDCD25 25 4500 2200 650 6
BDCD40 40 5000 2500 700 25 5 7.8 P43
BDCD63 63 5600 2500 850 7.5 10.8 P50
BDCD100 100 6000 2800 900 20 13.3
BDCD150 150 8000 3000 1150 7.5×2 8 25.3
BDCD200 200 10000 3000 1150 27 PQU80
BDCD250 250 10000 3000 1150 18 43.5
