可控硅恒压电源（IP20 Triac dimmable driversIP20
产品特点： Features：
◆调光方式：可控硅调光，满足前沿（Triac）调光、后沿ELV调光 ◆Dimming type：Triac dimmable
◆高质量，体积小、寿命长 ◆High quality, small volume and long life
◆兼容性强，调光无闪烁，无抖动，调光曲线平滑 ◆Strong compatibility, no flicker, no jitter, smooth dimming curve
◆具备短路、过载、过压及保护 ◆Open circuit and short circuit protection
◆满负载老化 ◆Output Protections: OLP/OVP/OTP
◆使用环境温度：-30℃~+50℃ ◆ Full Load Aging Test
◆电磁兼容符合EN55015、EN61000、EN61547 ◆ Work Temperature: -30℃~+50℃
◆安规标准符合EN61347-1 ◆EMC approval according to: EN55015, EN61000 and EN61547
◆安规标准符合EN61347-1 ◆Conform to general and safety requirements IEC/EN 61347-1
产品型号 "输出功率
（W" 输入电压AC-V 输出电压（DC-V 输出电流（mA 效率（EFF 防护等级 "产品尺寸
（L*W*H）cm" "重量
Kg/pcs"
LTD-P-030 30W AC100-130V AC200-240V 12V 2.5A 85% IP20 34*23.5*18 0.5Kg
30W 24V 1.25A 85% IP20 34*23.5*18 0.5Kg
LTD-P-036 36W "
AC100-130V AC200-240V" 12V 3A 85% IP20 34*23.5*18 0.5Kg
36W 24V 1.5A 85% IP20 34*23.5*18 0.5Kg
LTD-P-045 45W "
AC100-130V AC200-240V" 12V 3.75A 85% IP20 34*23.5*18 0.5Kg
45W 24V 1.87A 85% IP20 34*23.5*18 0.5Kg
LTD-M-060 60W "
AC100-130V AC200-240V" 12V 5A 85% IP20 36*32*22 0.7Kg
60W 24V 2.5A 85% IP20 36*32*22 0.7Kg
LTD-M-080 80W "
AC100-130V AC200-240V" 12V 6.66A 85% IP20 36*32*22 0.7Kg
80W 24V 3.33A 85% IP20 36*32*22 0.7Kg
LTD-M-100 100W AC100-130V AC200-240V 12V 8.3A 85% IP20 36*32*22 0.7Kg
100W 24V 4.15A 85% IP20 36*32*22 0.7Kg

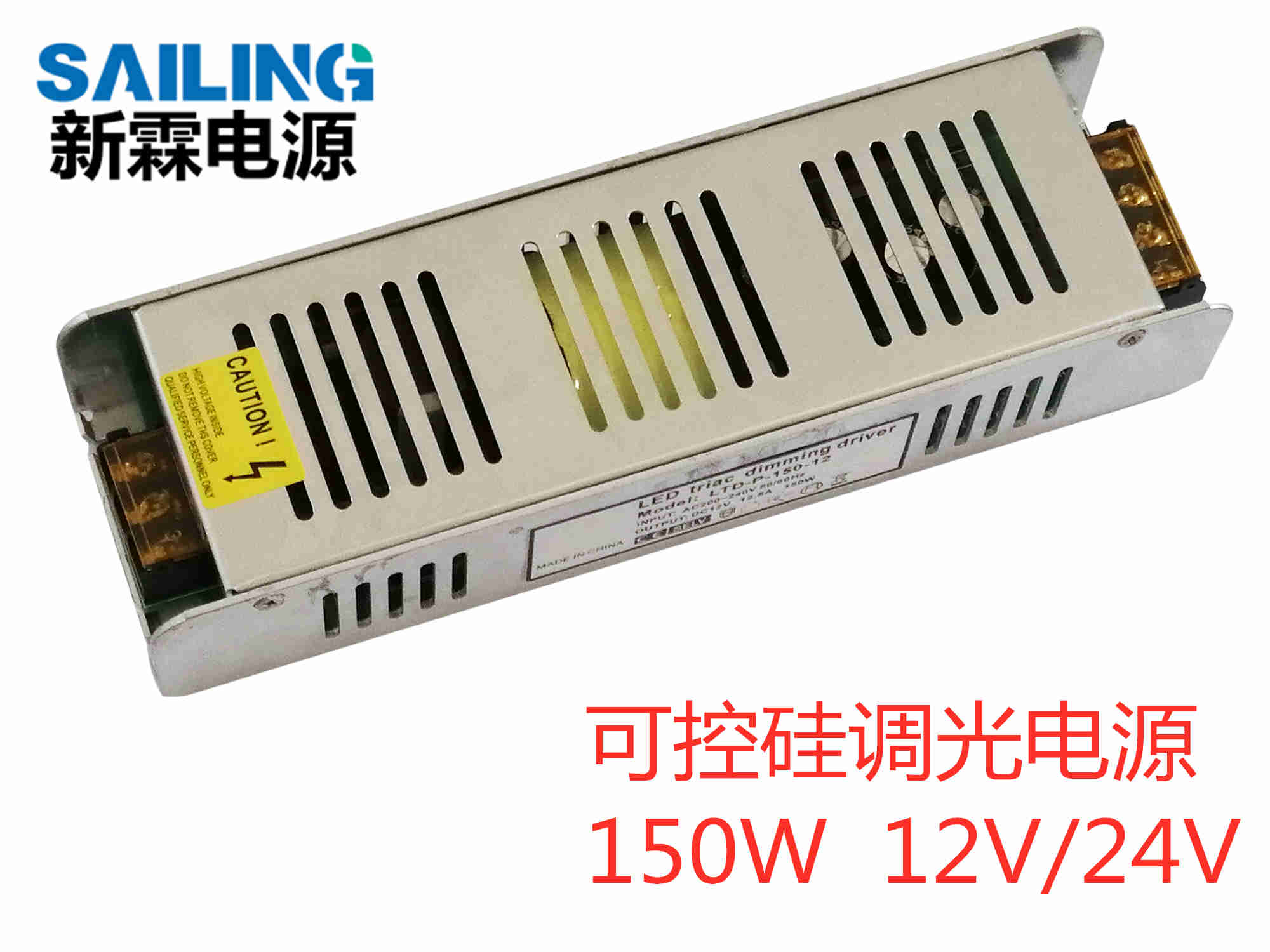

LTD-F-150 150W AC100-130V AC200-240V 12V 12.5A 85% IP20 65*23.5*18 0.8Kg
150W 24V 6.25A 85% IP20 65*23.5*18 0.8Kg
LTD-M-150 150W "
AC100-130V AC200-240V" 12V 12.5A 85% IP20 65*23.5*18 0.8Kg
150W 24V 6.25A 85% IP20 65*23.5*18 0.8Kg
LTD-M-200-12 200W AC100-130V AC200-240V 12V 16.6A 85% IP20 65*23.5*18 0.8Kg
200W 24V 8.33A 85% IP20 65*23.5*18 0.8Kg
