1. 额定电气性能
Operating Voltage/Current
AC120V/1A DC 48/1A 220V/1A
2. 触点形式
Contact Type
D常闭/Normally Closed或H（常开/Normally Open）
3.环境温度
Ambient Temperature
-55℃~180℃
4.过热温度
Over Heat Temperature
250℃ 瞬时/instantaneous
5.重量
Weight
2g
6.电气强度
Dielectric Strength
AC1500V
7.绝缘电阻
Insulation Resistance
100MΩ
8.接触电阻
Contact Resistance
≤50mΩ
9.使用寿命
Life Cycles
≥10,000
10.动作温度误差
Tolerance
±2.5℃,±5℃
● 工作性能温度寿命长、产品动作灵敏可靠、不拉弧且安装十分方便，
无线电干扰少等，采用国际T0220/Y220标准封装。

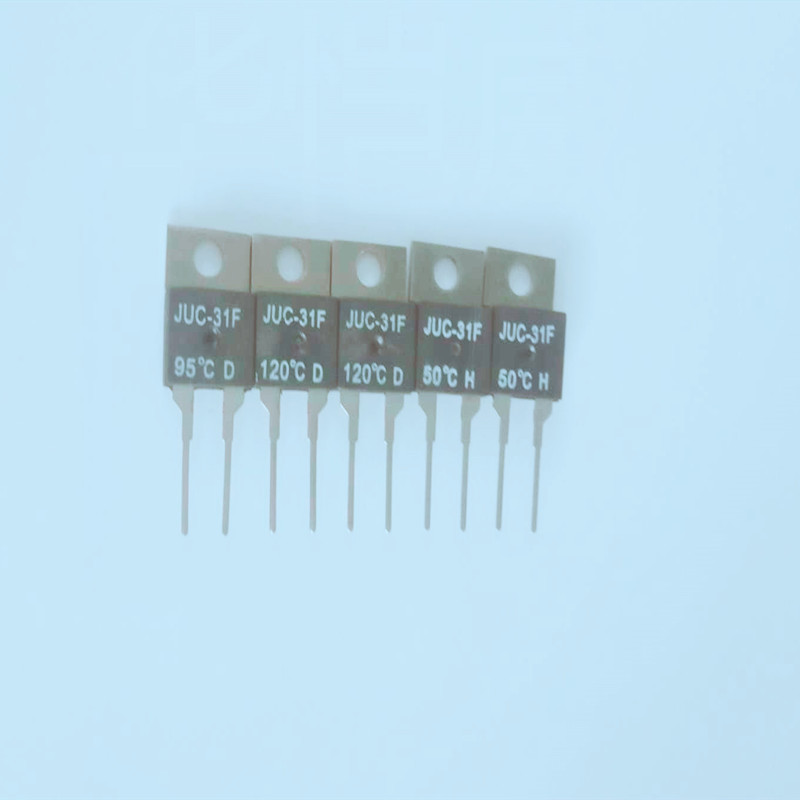

● JUC-31F thermal protector contact with the products for the sudden-jump temperature plastic thermostat. Adoption of interational T0220/Y220 standard package, high product reliability、samll size、light weight、
easy to install ect.
