简介

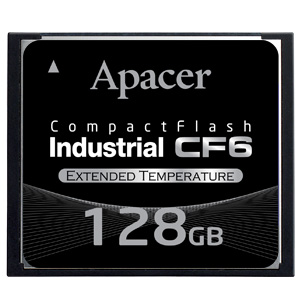

Apacer industrial CF6 card is compliant with the CFA 6.0 specifications. Apacer adopts the standard 50-pin connector and MLC chip featuring lower cost and higher capacity for the card. It is available in capacities from 8GB to 128GB. The data transfer mode is up to PIO-6, Multi-Word DMA-4 and Ultra DMA-6 with the sequential read/write speed reaching as fast as 110/60 MB/sec. To help data stay correct, this CFC6 memory card also supports 72-bit ECC function, wear-leveling function and S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), thereby substantially enhancing product reliability.
突出显示
?Compliant with CFA 6.0 specifications
?Built-in ATA Secure Erase and S.M.A.R.T. Functions
?Advanced wear-leveling and Block Management
?Intelligent Power Failure Recovery
?MLC extended temperature support
规格
型号 CFC 6-M
接口 PC card memory mode, PC card I/O mode, True IDE mode
连接器 50-pin
传送模式 PIO Mode-6, MWDMA Mode-4, UDMA Mode-6
NAND闪存类型 MLC
容量 8GB~128GB
持续读取能力(MB/秒) Up to 90
持续写入能力(MB/秒) Up to 60
ECC支持 72 bit/1K Bytes
标准工作温度 0~+70
扩展工作温度 ( °C ) -40~+85
存储温度 -40~+100
冲击 50G
振动 15G
湿度 5%~95%
尺寸(mm) 42.8x36.4x3.3
MTBF (hours) >1,000,000
